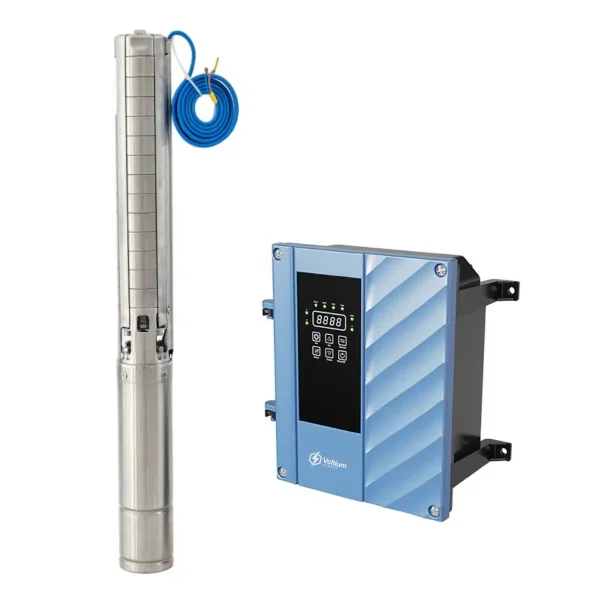

230m AC/DC Hybrid Solar Borehole Pump with Controller

230m AC/DC Hybrid Solar Borehole Pump with Controller

The 230m AC/DC Hybrid Solar Borehole Pump with Controller is designed for deep borehole applications where high head performance, dependable water supply and hybrid power flexibility are required. It is ideal for farms, remote water systems, agricultural use, tank filling and demanding borehole installations.

This high-head hybrid solar borehole pump can operate from solar DC power and AC backup power, making it a practical solution for off-grid water supply, load shedding conditions and areas where consistent pumping is important.

Key Features and Benefits

• Maximum Head: 230m
• Maximum Flow Rate: 3.5m³/h
• Power Output: 2200W
• AC/DC Hybrid Operation
• Supports Solar DC and AC Power Input
• AC Input Voltage: 90-240V
• Recommended Solar VOC Range: 100-490V
• Recommended Solar Panel Power: 2860W+
• Controller Included
• MPPT Function for Improved Solar Power Utilisation
• Wide Voltage Brushless Solar Pump System
• Controller Waterproof Grade: IP65
• Ambient Controller Temperature Range: -15°C to 60°C
• Maximum Controller Input Current: 17A
• LED Display Shows Power, Voltage, Current, Speed and Working Condition
• Automatic Start and Stop Function
• High Voltage, Low Voltage, Over-Current and High Temperature Protection
• 3-Year Warranty

Ideal Applications

• Deep borehole water pumping
• Farm and agricultural water supply
• Remote water supply systems
• Water storage tank filling
• Solar-powered borehole installations
• High-head water pumping applications
• Load shedding backup water supply

Related AC/DC Hybrid Solar Borehole Pumps

• 95m AC/DC Hybrid Solar Borehole Pump with Controller
• 125m AC/DC Hybrid Solar Borehole Pump with Controller
• View all Borehole & Booster Pumps

Delivery

Delivery is available nationwide in South Africa through
The Courier Guy.

Order a High-Head Hybrid Solar Borehole Pump

Choose the 230m AC/DC Hybrid Solar Borehole Pump with Controller if you need a powerful water pumping solution for deep boreholes, farms and high-head applications.
